Chalcedony - the Chameleon Gemstone

Published: 13.01.2019 11:06
Last updated: 20.02.2019 07:41

Chalcedony is very variable and versatile stone and occurs in many environments. It was used since prehistoric times for stone tools and became one of the most used gemstones. Despite its abundancy, chalcedony still has some secrets.

Structure of Chalcedony

Chalcedony is not a scientifically recognized mineral, since it is a cryptocrystalline variety of quartz. Similar to alpha (lower) quartz, chalcedony sports a trigonal crystal system. The chemical composition of chalcedony is the same as that of quartz - SiO2, or silicon dioxide. Its crystals are only able to be seen when it is viewed under a microscope. Its appearance, to the naked eye, makes it seems like it contains no crystalline structure whatsoever. Chalcedony forms botryoidal, rounded, mamillary or stalactitic aggregates, and it is common to find geodes filled with chalcedony.

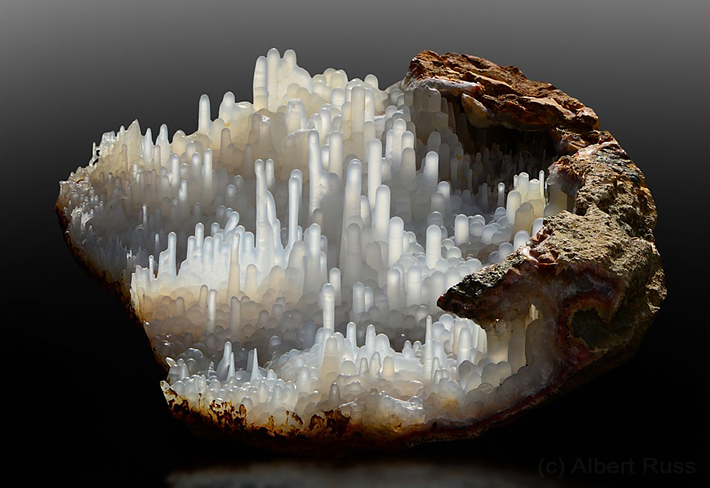

Volcanic geode filled with chalcedony, Morocco
Volcanic geode filled with chalcedony, Morocco. Size 17 x 12 cm. Photo: Albert Russ

Tiny chalcedony crystals form microscopic fibres aligned along the c-axis. The microcrystals stacked perpendicular to the c-axis are called length-fast chalcedony. The microcrystals stacked parallel to c-axis are called length-slow chalcedony, or quartzine. Both of these chalcedony forms are often intergrown, but quartzine is far less common. Chalcedony also often contains monoclinic SiO2 called móganite (usually up to 20 %). Móganite is unstable and slowly recrystallizes into normal quartz. A small amount of water is also often present in the chalcedony structure. The water is partially absorbed into the fibrous microstructure and partially incorporated into the structure as Si-OH bonds. Chalcedony might seem to be a simple mineral, but its structure still contains a lot of scientific mysteries.

Physical Properties of Chalcedony

The colors of chalcedony are as varied as the shades of quartz, but they do present themselves a bit differently. Chalcedony may be found in multicolored, banded, or colorless variations; it may be red, yellow, orange, blue, green, purple, pink, gray, brown, or white. Depending on the bodycolor of the type of chalcedony, the stone may be opaque or transparent. Most often, its luster is waxy, dull, or vitreous, but rarely, it may appear iridescent. Chalcedony appearance is very similar to the amorpheous (non-crystaline) form of silica - opal.

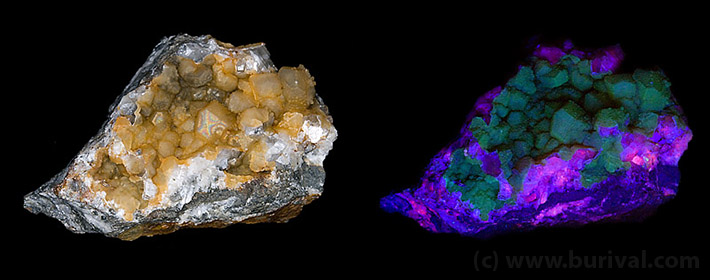

Chalceony layer on calcite in daylight and in the shortwave UV light
Calcite covered by orange chalcedony from Vlastějovice, Czech Republic. Left in daylight, right under shortwave UV light. Size 10 x 8 cm. Photo: Zbyněk Buřival

Chalcedony has conchoidal fracture and no cleavage. Its specific gravity is about 2.6-2.7 g/cm3 and it registers a 6 on the Moh's scale of hardness. Many forms of chalcedony display yellowish or greenish fluorescence in UV light, but pure chalcedony is not fluorescent.

Occurrence

Chalcedony usually occurs in low or medium temperatures, and it is a very commonplace mineral. It is often present in hydrothermal veins, although that is not the only instance of its natural formation. It may also be found in volcanic rocks as fillings in veins, in volcanic bubbles called geodes, in limestone layers, in sandstone as cement, and as an agent of fossilization.

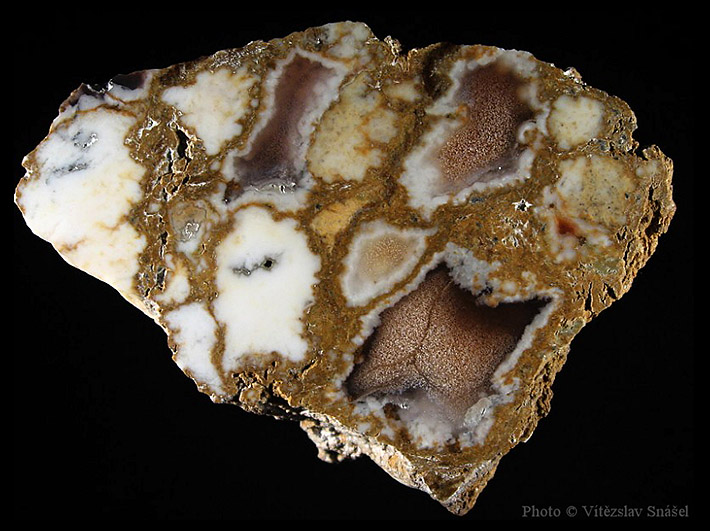

Pale colored chalcedony from Ahníkov, Czech Republic
Chalcedony from Ahníkov, Czech Republic. Size 9 x 7 cm. Photo: Vitězslav Snášel

Chalcedony forms in a wide variety of geological locations. It may create stalactites or layers of filling in rock cavities and geodes. When naturally-occurring silica gel is present with water and at a low to mid temperature, chalcedony forms. It is uncommon in metamorphic and igneous rocks, but it does still exist in warm veins of watery silica.

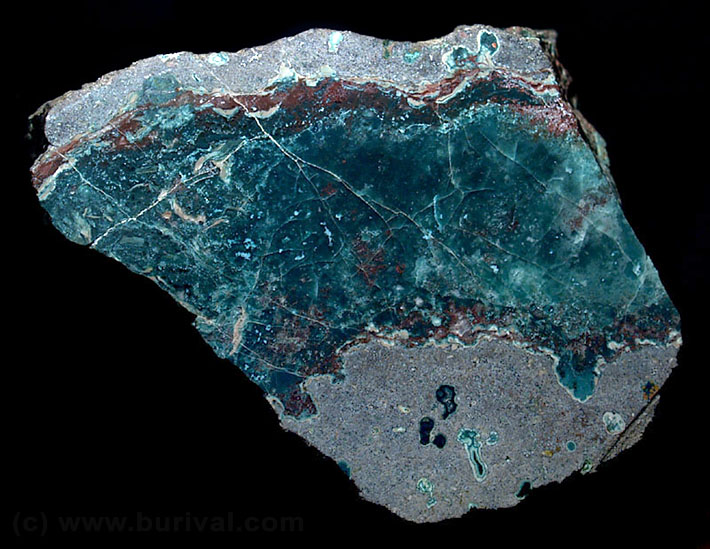

Dark green chalcedony in volcanic rock from Kozákov, Czech Republic
Green chalcedony from Kozákov, Czech Republic. Size 8 x 7 cm. Photo: Zbyněk Buřival

Chalcedony was first discovered in Istanbul, in Turkey, and was named for the Chalcedon area in which it was found. Chalcedony is often connected with occurence of agates in volcanic rocks. The most important chalcedony locations include agate fields in Brazil, Uruguay, Morocco, Mexico or Malawi. Deccan trap basalts in India usually lack agates, but have yielded some very nice chalcedony specimens together with zeolites. Famous chalcedony-replaced corals are from Tampa Bay, Florida. Awesome fossilized woods made of chalcedony occur in the Petrified Forest in Arizona; lesser-known huge fossilized wood comes from Mongolia. Most of the petrified wood found worldwide is fossilized by chalcedony or opal. Very nice flint comes from Rugen Island in Germany as well as many other sites in creatceous sediments along the German, French and British coast. One famous chrysoprase location is in an abandoned nickel mine in Szklary, Poland.

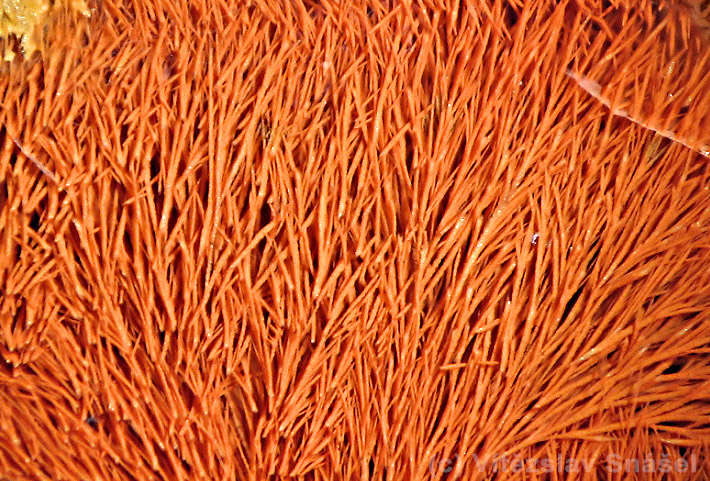

Detail of the fine chalcedony tubes from Železnice, Czech Republic
Detail of the fine chalcedony from Železnice, Czech Republic. FOV 0.4 mm. Photo: Vitězslav Snášel

Varieties

Chalcedony comes in many forms and colors, and therefore there are many different varieties of this stone. There is often no solid definition for one particular variation of chalcedony. Many locations have specific labels for their varieties, so that a stone may be called jasper in one place and agate or bloodstone in another. The following list contains only the most widely used and recognized varietes.

Bloodstone (heliotrope)

Bloodstone (or heliotrope) is a unique variety of chalcedony, usually covered in red spots that resemble drops of blood. These markings stand out against the dark green bodycolor of the stone. Bloodstone forms when chlorite appears as an inclusion in chalcedony along with iron oxide impurities in the stone. The chlorite causes the stone's green color, and the impurities provide the "blood."

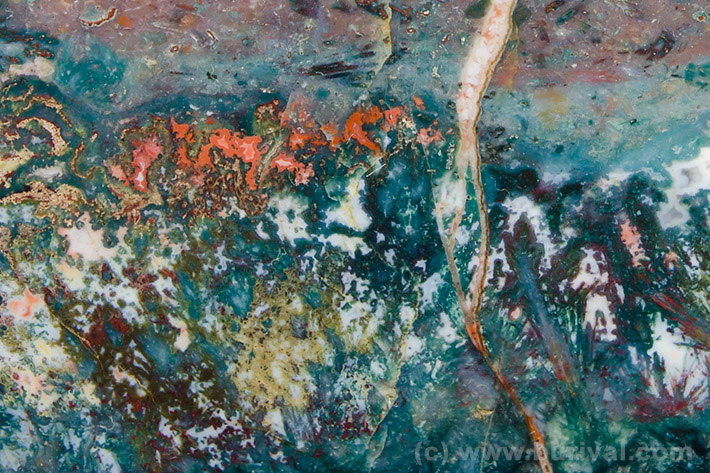

Bloodstone chalcedony from Kozákov, Czech Republic
Bloodstone with less typical appearance from Kozákov, Czech Republic. Ivo Halíček collection, size 9 x 6 cm. Photo: Zbyněk Buřival

Carnelian

Carnelian is a vivid type of chalcedony, characterized by its bright and striking color, which can be orange, amber, or red. It is not a gem of high value, but it is still used in some jewelry regardless. Most of the time, carnelian presents a natural color, but many carnelians on the market are in fact dyed quartz or low quality chalcedony.

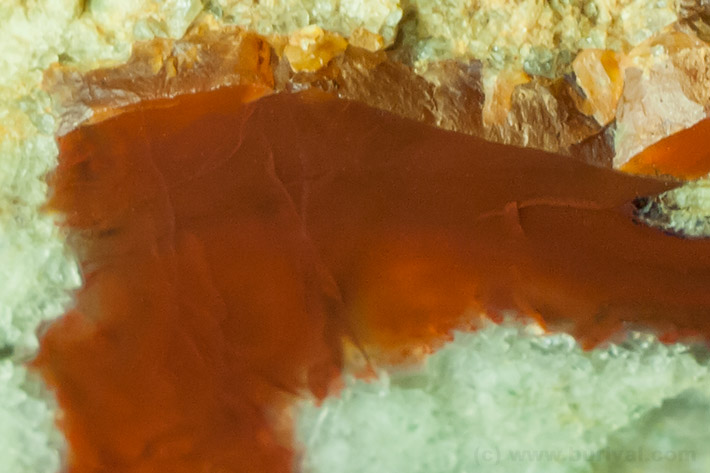

Carnelian chalcedony in green fluorite from Blahuňov, Czech Republic
Carnelian in green fluorite from Blahuňov, Czech Republic. FOV 3 cm. Photo: Zbyněk Buřival

Jasper

One very popular variety of chalcedony is the red, brown, or yellow stone known as jasper. This stone usually presents as multicolored, and features fascinating mottling, stripes, rings, and spots that are never quite the same in two separate stones. There are dozens of different trade names for jasper variations, depending on their colors or the types of inclusions they may feature.

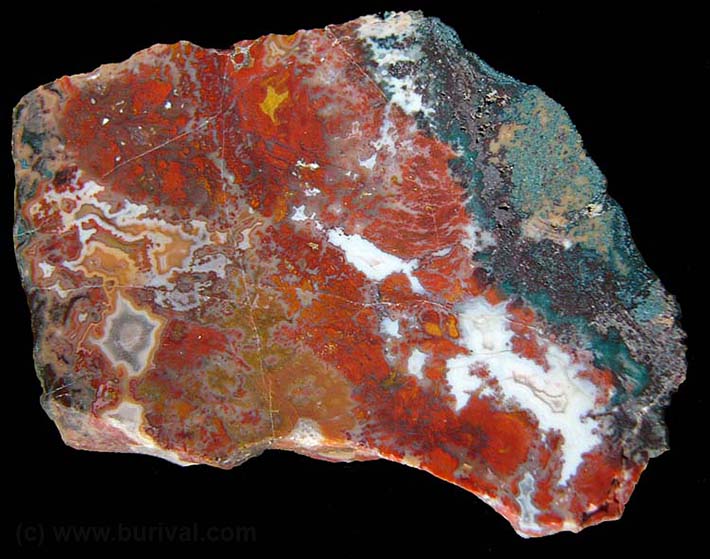

Colorful jasper chalcedony from Aouli, Morocco
Colorful jasper from Aouli, Morocco. Size 7 x 6.5 cm. Photo: Zbyněk Buřival

Plasma

An uncommon type of chalcedony that many people have not heard of is the variation known as plasma. This dark green stone is usually opaque, which makes its red, yellow, or white spots stand out well. These spots are caused by impurities in the stone. Although its coloration is similar to bloodstone's, the two are different gems. In fact, plasma is not pure chalcedony, but a mixture of chalcedony, quartz and móganite. Unlike other chalcedony types - often connected with volcanic activity - plasma originates from the decomposition of mantle rocks called peridotites. While the peridotite decomposes, it forms serpentinite rocks and releases silica gels. These gels usually form abundant opals and, less often, chalcedony or plasma.

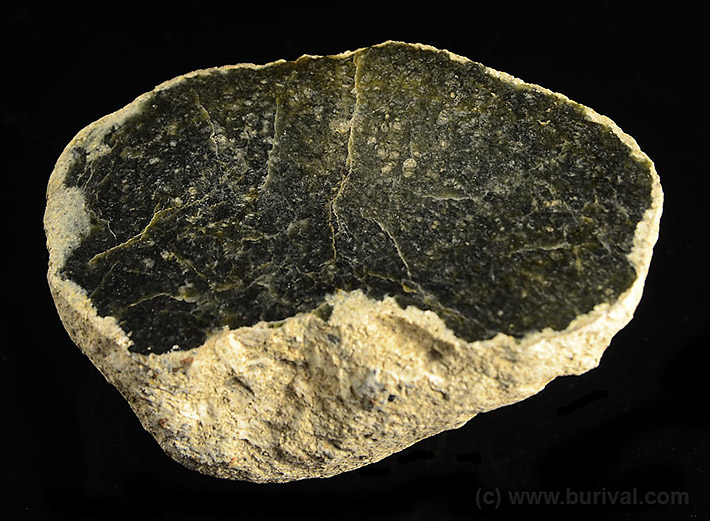

Dark green plasma chalcedony from Bojanovice, Czech Republic
Dark green plasma from Bojanovice, Czech Republic. Size 7 x 5 cm. Photo: Zbyněk Buřival

Chrysoprase

When nickel impurities are present in a chalcedony specimen, the result is known as chrysoprase. Chrysoprase can occur in a variety of shades of green, from a pale yellow-green mint to a deep apple shade. The darker shades of chrysoprase are commonly used in rings and necklaces, but if the stone is too dark, it becomes classified as prase and is no longer as desireable. Chrysoprase might be easily confused with apple green opals, also colored by nickel.

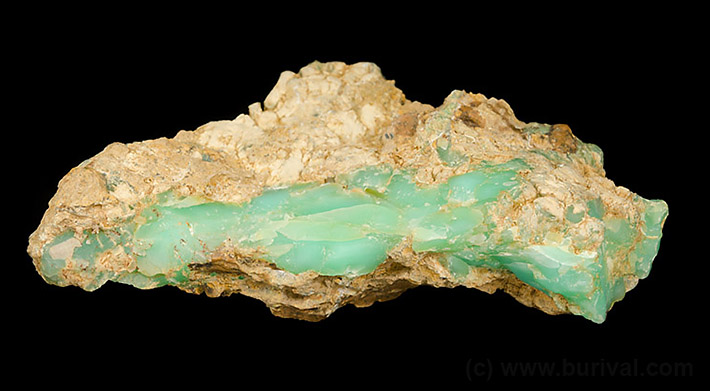

Apple green chrysoprase chalcedony from Szklary, Poland
Chrysoprase from Szklary, Poland. Ivo Halíček collection, size 13 x 6.5 cm. Photo: Zbyněk Buřival

Chert and Flint

Chert and flint are often used as synonyms. Both names refer to an easily breakable sedimentary formation of chalcedony, which can be found in nodule form as well as in layered deposits or concretionary masses. Flint is a good quality variety of chert from chalks and limestones. It was used as a popular material for tools in prehistoric times. Chert is a broader term referring to any grayish, brown or black sedimentary types of chalcedony. Exact scientific classification of chert is still uncertain. It has mixed structure made of both microcrystalline quartz and microfibres of silica and thus can be classified also as a sedimentary rock.

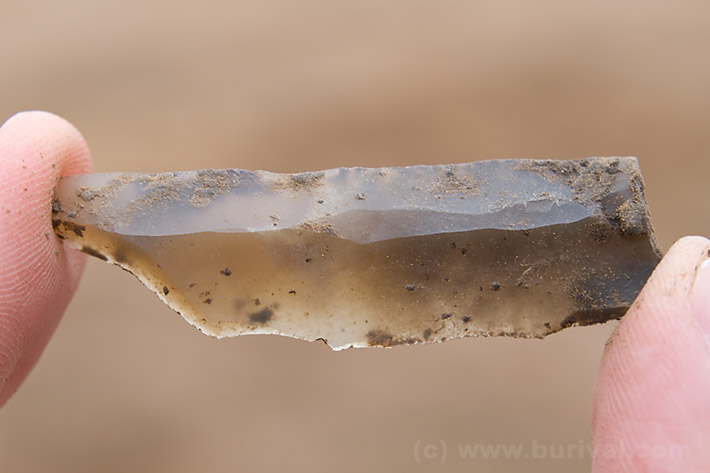

Prehistoric blade made of gray flint
Prehistoric blade made of gray flint. Photo: Zbyněk Buřival

Tiger's Eye

Tiger's eye is a popular chalcedony variant used in the making of beads and carved jewelry. It is not commonly used in cabochons or other cuts. When crocidolite absorbs quartz, this fibrous chalcedony is formed. The brown and yellow multicolored nature of this stone comes from its chatoyancy, which means that it has string-like inclusions making it resemble a cat's eye.

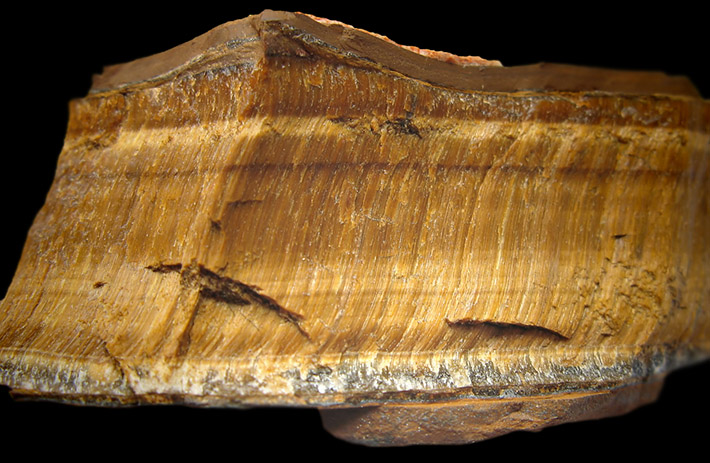

Sample of rough Tiger's Eye from South Africa
Sample of rough Tiger's Eye from South Africa. Photo: Ra'ike

Hawkeye

Hawkeye is very similar to tiger's eye, although it comes in blue-gray to blue-green rather than the yellow to brown of its cousin. Hawkeye, too, is formed when crocidolite becomes embedded with quartz over time, but the pseudomorph is incomplete. Thus, hawkeye is a mixture of fibrous asbestos with chalcedony. Like tiger's eye, too, hawkeye is chatoyant in nature.

Petrified wood and corals

Coral and petrified wood are organic gemstones, as opposed to the majority of others, which are mineral in nature. When a living coral dies in the ocean, pieces of it break off and leave the dead skeleton of the coral behind. The coral skeleton, which is made of calcite, is slowly replaced by chalcedony. It occurs naturally in white or the more commonly seen pink-orange.

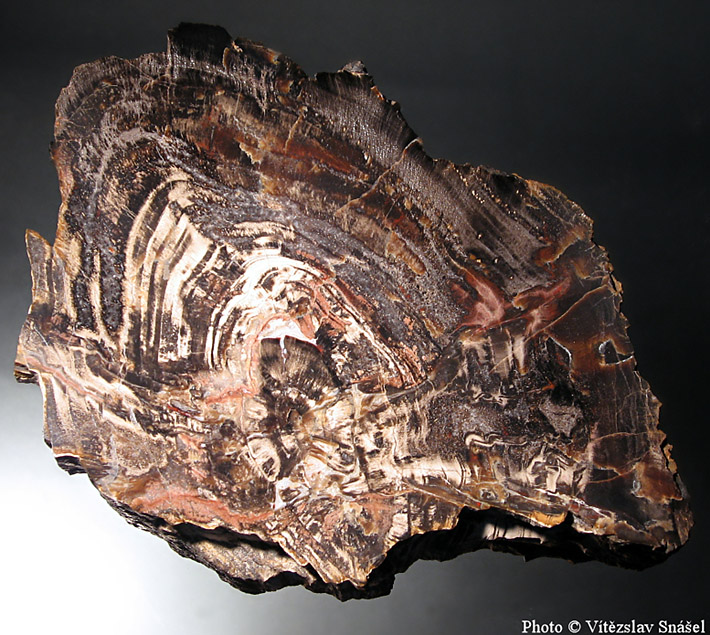

Polishad slab of wood fossilized by chalcedony from Studenec, Czech Republic
Polishad slab of wood fossilized by chalcedony from Studenec, Czech Republic. Size 20 x 13 cm. Photo: Vítězslav Snášel

Petrified wood is similar, but different. It is organic plant matter that has been overtaken by a quartz - in this case, chalcedony - and fully fossilized. Over time, the organic material simply becomes replaced by the chalcedony. Both of these organic gemstones are popular for use in jewelry.

Agate

Strictly put, agate is not a true mineral but rather a mixture of various forms of quartz, chalcedony, opal, móganite and many impurities. But most of the agate mass is quartz and chalcedony, despite it can be many different layers with various colors or shapes.

Agate features banded patterns and a variety of colors, including red, blue, green, white, brown, purple, orange, pink, yellow, black, gray, and any combination of these colors. No two cuts of agate are exactly alike, making it an interesting stone for carvings such as statues or pins.

Volcanic geode with agate from Chihuahua, Mexico
Volcanic geode with agate from Chihuahua, Mexico. Size 12 x 11 cm. Photo: Vítězslav Snášel

Agate is not made by chalcedony only. The various layers may consist of chalcedony, quartz and opal, and many agates may contain a hollow space inside that is filled with quartz crystals, calcite, or goethite. Unfortunately, most agates from Brazil are dyed - often with unnatural colors like bright pink, dark blue, green and many others.

Volcanic thunderegg with agate from Nowy Kosciol, Poland
Typical volcanic thunderegg with agate from Nowy Kosciol, Poland. Size 13 x 11 cm. Photo: Vítězslav Snášel

True agate is a typical geode or thunderegg (bubble in the lava) that is filled by layers of various SiO2 variations, mostly chalcedony and quartz. However, many dealers and collectors have created special types of agate like moss agate, feather agate and more, which do not have banding at all. These types of agate may as well be labelled jasper or chalcedony.

Quartz vein with chalcedony from Horní Halže, Czech Republic
Quartz vein with chalcedony from Horní Halže, Czech Republic is often labeled as "lightning agate". Size 10 x 7.5 cm. Photo: Vítězslav Snášel

Vein material made mostly of quartz and chalcedony from Krusne Hory in Czech Republic and Erzgebirge in Germany is also called agate. However, most of this material also lacks banded patterns. There are so many sub-varieties and alternate types of agate that it requires its own special agate article.
