Wollastonite – Mineral Properties, Photos and Occurrence

Author: Vic Ridgley and Zbyněk Buřival
Published: 19.07.2021 09:09
Last updated: 19.07.2021 09:10

Wollastonite is a common metamorphic silicate, mostly used in various industrial applications. Its nice crystal sprays and bright fluorescence make it also an interesting mineral specimen.

Crystal Structure of Wollastonite

Wollastonite is a seemingly simple calcium silicate (CaSiO3), but its real crystallographic formula is Ca3(SiO3)3. Wollastonite crystallizes in the triclinic or rarely monoclinic crystal system (more to this later). It usually occurs as massive aggregates of prismatic, lamellar, radiating or fibrous forms. Tabular forms are rare. Twinning is common on the twin axis [010], and on the composition plane {100}.

Wollastonite belongs to the inosilicates, it displays a chain silicate structure. It belongs to pyroxenoids, which differ from structurally similar pyroxenes by having a third SiO4 tetrahedron in its chains, rather than two. Part of the calcium in wollastonite can be substituted by unspecified amounts of Mg, Mn or Fe. However, there is obvious lack of information about possible solid solutions.

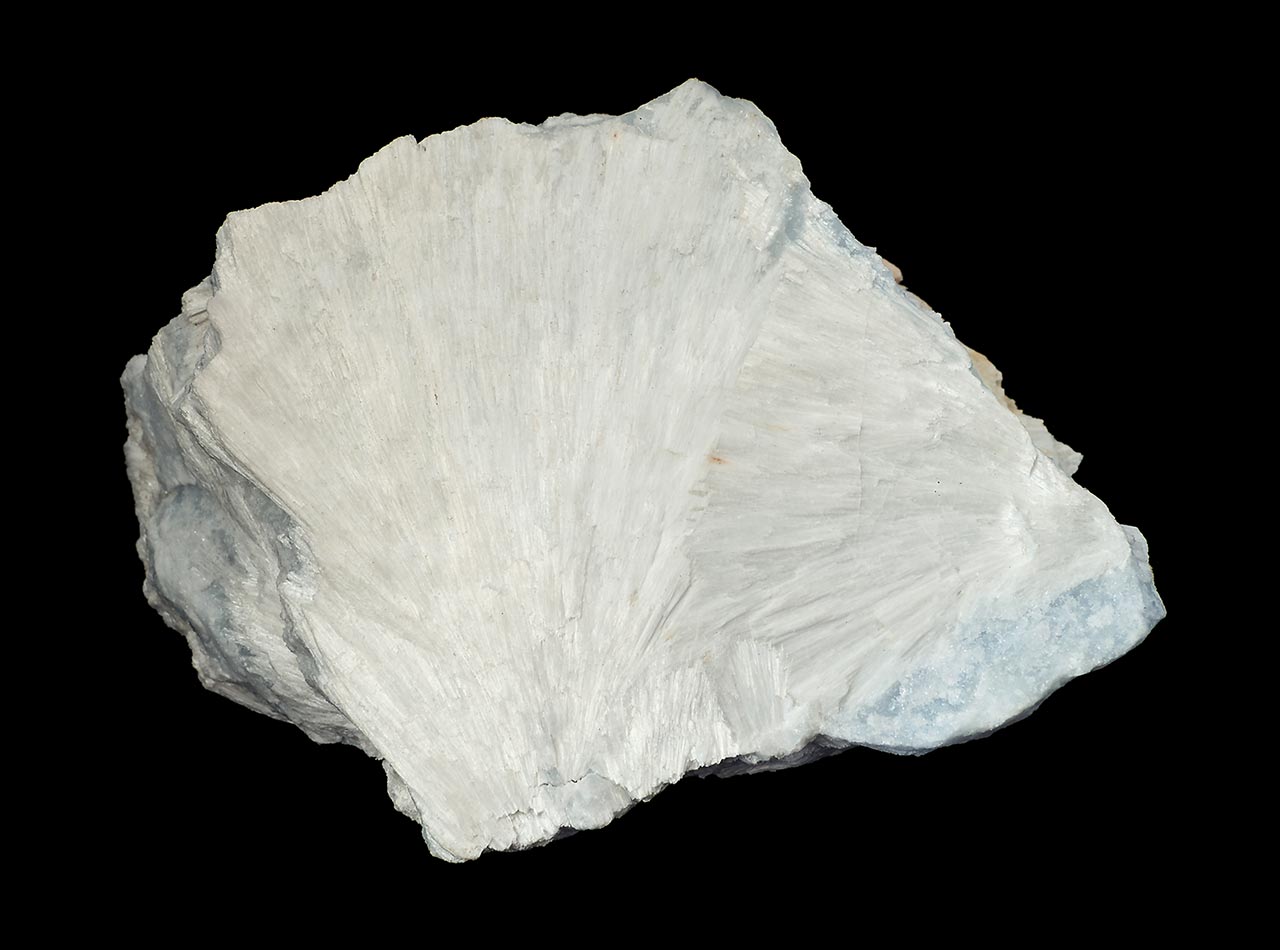

Acicular white wollastonite mineral on the bluish marble from Nezdice, Czech Republic
Acicular white wollastonite on the bluish marble from Nezdice, Czech Republic.
Size: 15 x 12 cm. Photo: Zbyněk Buřival

Wollastonite is the most common member of the wollastonite group. The other common one is pectolite, remaining 11 group members are all quite rare.

There are six polytypes of wollastonite, which basically means that wollastonite has six different structures. There is wollastonite-1Å, -3Å, -4Å, -5Å and -7Å, which are all triclinic and differ only by the length of one axis. The last polytype is wollastonite-2M, which is monoclinic and has different structure. This obviously violates IMA rules for defining mineral, as mineral must have only one clearly defined structure.

To make it even more confusing, there are also wollastonite polymorphs – which are valid IMA approved minerals. These also have the same chemical composition as wollastonite but have different structure: triclinic breyite and monoclinic pseudowollastonite.

Physical Properties of Wollastonite

Wollastonite comes in a limited range of colors, predominantly white, colorless or gray. However, light yellow, light green, brown and pink specimens are also known. Its notable properties are its extreme whiteness and brightness, and relative lack of volatility.

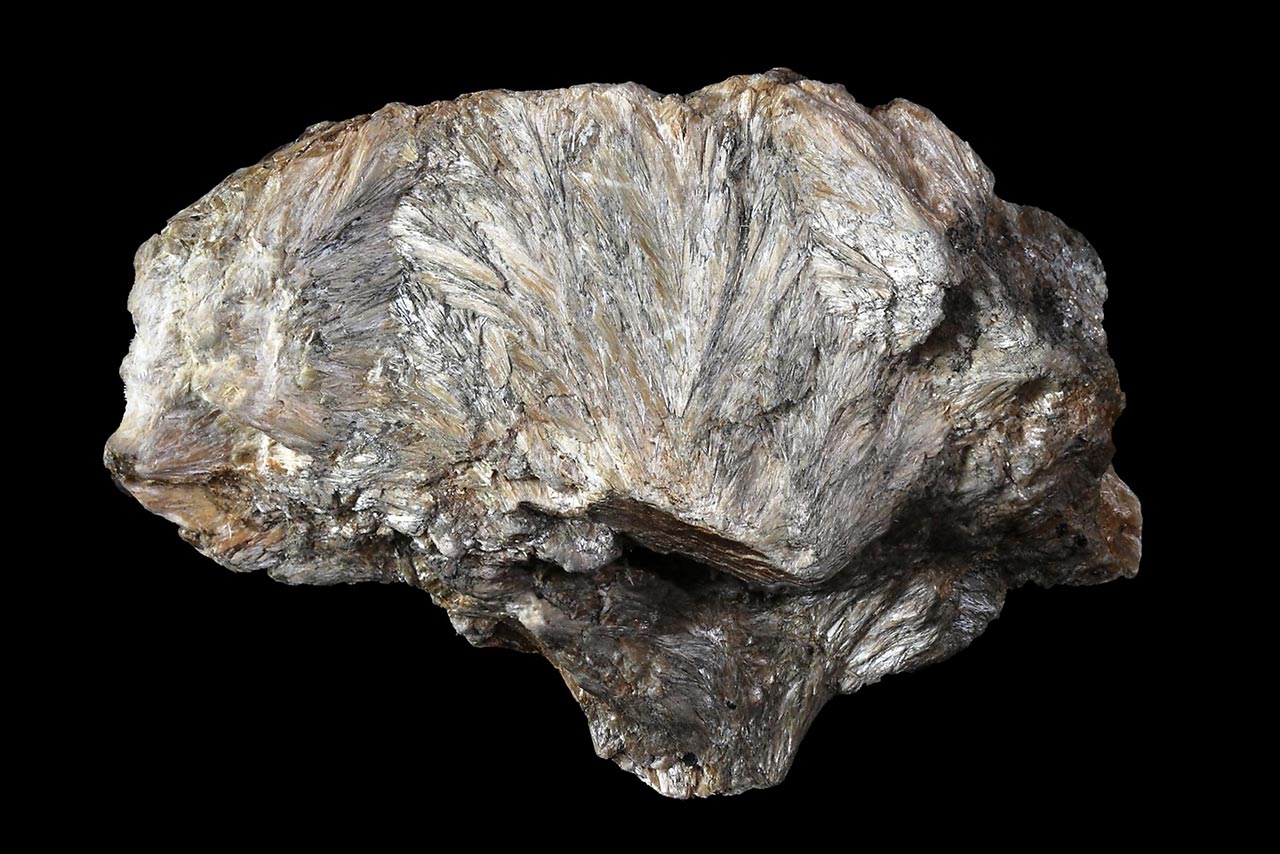

Acicular brownish wollastonite mineral specimen
Acicular brownish wollastonite from unspecified locality.
Size: 7 x 5 cm. Collection and photo: Department of Geology, TalTech. Licence: CC BY-SA 3.0

The luster on crystal faces is vitreous, silky, or dull to pearly. Cleavage is perfect at 90° angles. Fracture is splintery to uneven. Its hardness is 4.5-5.0, with a white streak and a density of 2.86-3.09. It exhibits some solubility in HCl. By weight, wollastonite is 48.3 % CaO and 51.7 % SiO2.

Some wollastonites are fluorescent in short-wave UV light: usually orange, it may also appear bluish white, yellowish white and yellow.

Wollastonite varietes

  • Ferrowollastonite is a gray to brown variety in which Fe partially replaces Ca.
  • Manganowollastonite is a light pink variety in which Mn replaces Ca.

Similar Minerals

Wollastonite looks very similar to other fibrous white minerals, especially if they occur in the form of sprays and fans of thin needle-shaped crystals. There are numerous pale colored fibrous minerals, which could possibly look like wollastonite. However, most of them occurs in completely different geological environment and/or is quite rare.

Very similar looking is pectolite, which can occur in the same rocks as wollastonite. Other similar minerals include fibrous sillimanite, pale fibrous tremolite, natrolite and other white fibrous zeolites.

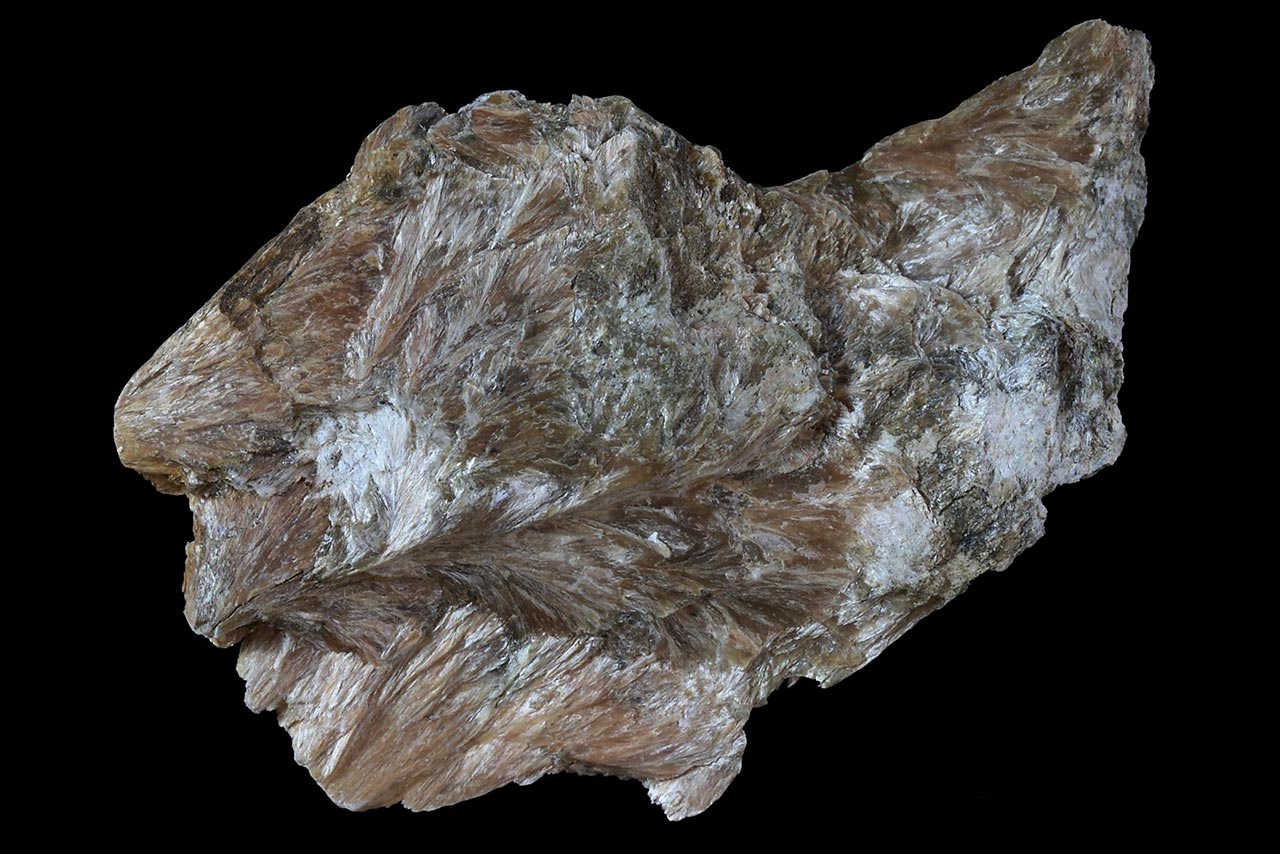

Brownish acicular wollastonite mineral specimen from Finland
Brownish acicular wollastonite from Finland.
Size: 8 x 7 cm. Collection and photo: Department of Geology, TalTech. Licence: CC BY-SA 3.0

Naming and Discovery

The name wollastonite is a recognition of the contributions of William Hyde Wollaston (1766-1828), an English chemist and mineralogist, renowned for discovering the chemical elements palladium and rhodium, and inventing both the reflecting goniometer and camera lucida.

The goniometer allows an investigator to determine, by rotation, through how many degrees a surface of a mineral specimen must be rotated to create an identical ray pattern. The camera lucida is essentially a half-silvered mirror which allows an artist to see a transparent view of what is in front of him, superimposed on his drawing surface.

Wollastonite Origin and Associated Minerals

Wollastonite is a mineral most closely associated with metamorphosed carbonate rocks or silica-infused hydrothermal modifications of calcareous sediments.

Typical wollastonite occurrence is in marbles with higher silica content. Other typical wollastonite bearing rocks are Ca-rich skarns and their subtype, sometimes labeled as erlan.

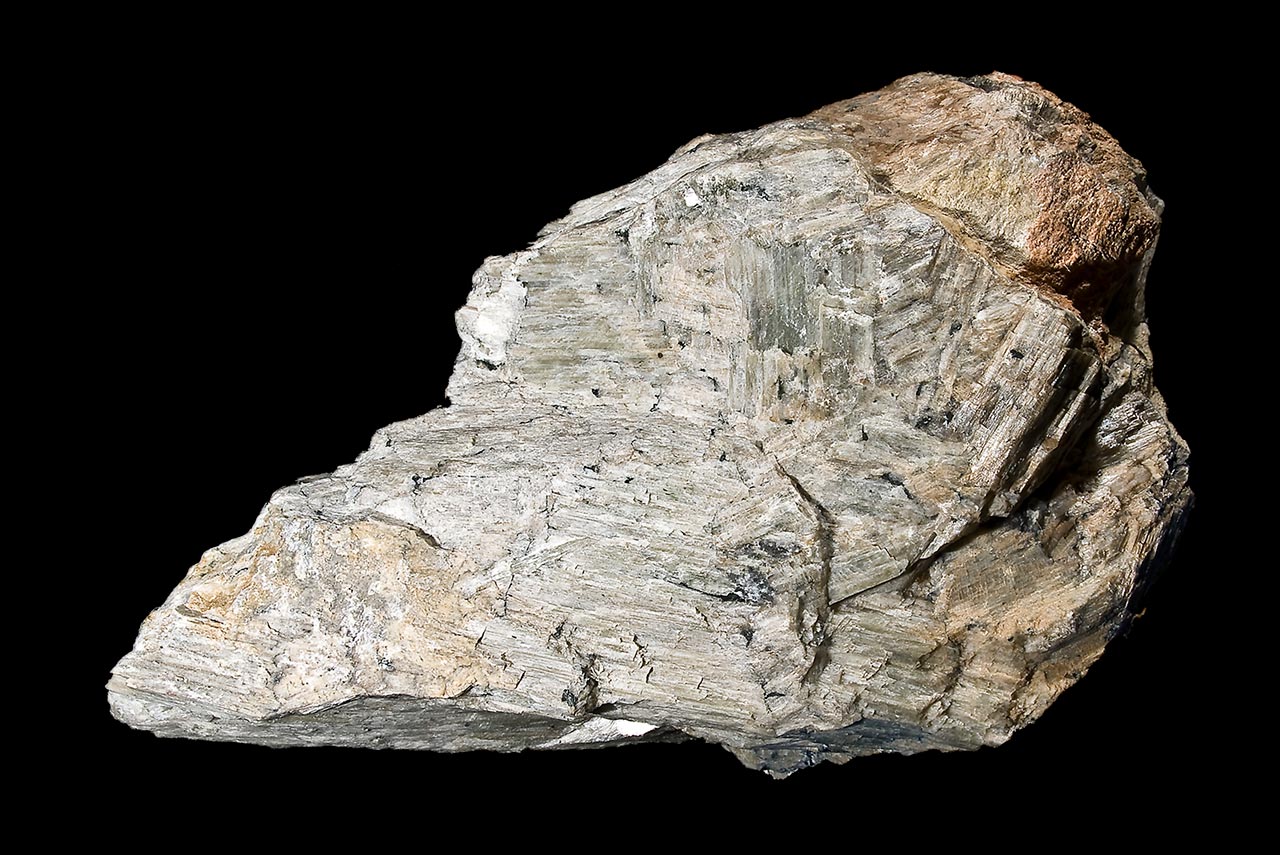

Pale brown tabular wollastonite crystals from Tranomaro, Madagascar
Pale brown tabular wollastonite crystals from Commune de Tranomaro, Province de Tuléar, Madagascar.
Size: 22 x 12 cm. Photo: Didier Descouens. Licence: CC BY-SA 3.0

Wollastonite is typical for calcium and silica rich environments. Its often associated with calcite and various calcium silicates: Ca-plagioclase anorthite, Ca-pyroxenes diopside and hedenbergite, Ca-amphibole tremolite, Ca-garnets grossular (and its variety hessonite) and andradite, vesuviane, and epidote.

Applications

Wollastonite improves the performance parameters of ceramics manufacturing because of its acicular particle shape, its whiteness and absence of volatile constituents. Specifically, it permits fast firing, increases product strength and reduces cracking and glazing problems.

Plastics producers have discovered the value of using wollastonite in polymers for a number of reasons. Most importantly, it is an economical filler to use in place of chopped glass. Second, the surface chemistry of wollastonite allows the use of a variety of chemical additives which reduce the viscosity of the melted plastic and improve dispersion of the components.

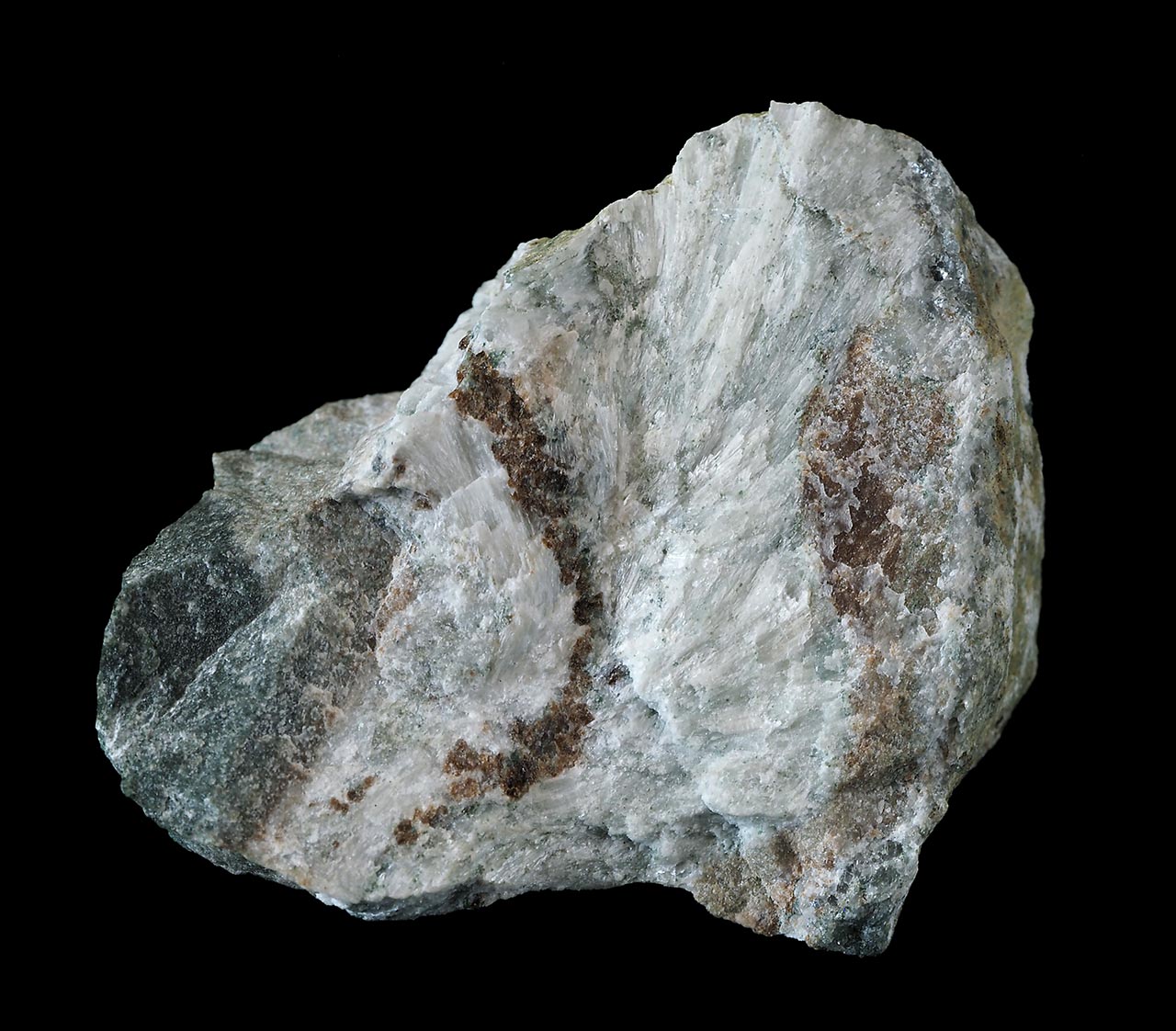

Acicular white wollastonite with red-brown andradite mineral specimen from Mirošov, Czech Republic
Acicular white wollastonite with red-brown andradite from Mirošov, Czech Republic.
Size: 6 x 6 cm. Photo: Zbyněk Buřival

Incorporated in paints, wollastonite performs a number of desirable functions: it improves the ability of paint to resist weathering; aids in maintaining a liquid suspension during application, reduces ultimate pigment consumption and the apparent gloss of the painted surface.

In metallurgy, wollastonite conditions molten slag and protects metals surfaces during the continuous casting of steel.

Because of its resistance to friction and chemical attack, wollastonite is an ideal substitute for dangerous asbestos in braking applications and the manufacture of floor tiles, insulation, plastic and roofing materials.

Occurrence of Wollastonite

In the recent past, the major producers of industrial wollastonite were China, accounting for about 60 % of world output, followed by India, the USA, Mexico and Finland.

Wollastonite is quite common mineral and interesting specimens are available worldwide:

Important Canadian localities include Oka Mine and Jeffrey Mine, Asbestos in Quebec and Outlet Post, Ontario. In the US, wollastonite comes from New York, at Natural Bridge and Rose Road Locality, both St. Lawrence Co., Lake Bonaparte and Diana, Lewis Co.; from California, at Crestmore Quarry, Riverside Co., Pine Mine, Independence and Darwin, Inyo County; from Nevada, at Gilbert, Esmeralda County; bright fluorescent wollastonite is known from New Jersey at Franklin and Ogdensburg, Sussex Co.

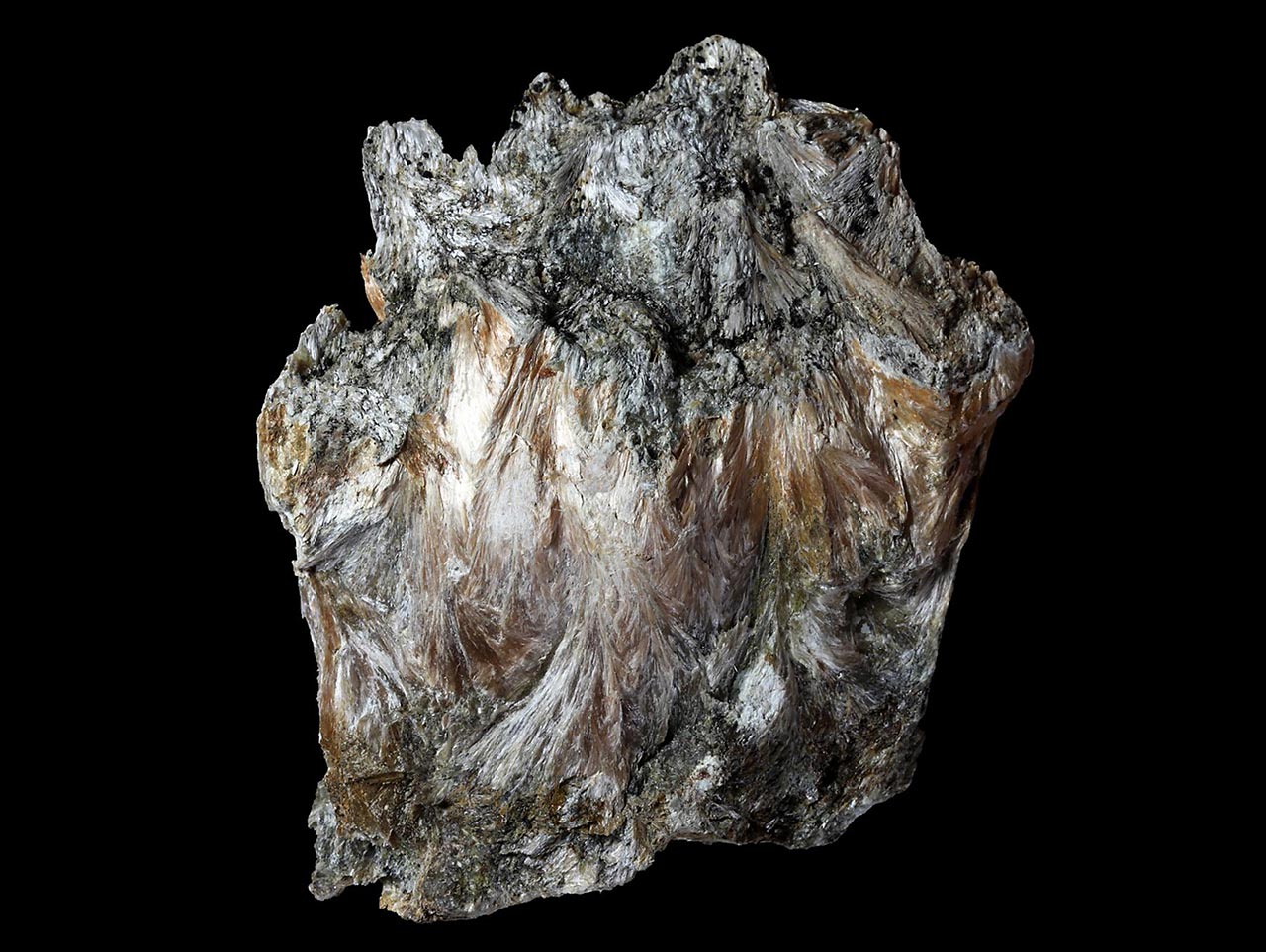

Acicular wollastonite mineral specimen
Acicular wollastonite sprays from unspecified locality.
Size: 9 x 10 cm. Collection and photo: Department of Geology, TalTech. Licence: CC BY-SA 3.0

Mexican localities include Chiapas, at Pichucalo and Pilares, Sonora.

There are numerous European localities: Lappeenranta, South Karelia and Pargas in Finland; Kongsberg in Norway; Gockum in Sweden; Dunmorehead, Mourne Mountains and Scawt Hill, Larne County, Ireland; Harzburg, Harz Mountains and at Auerbach, Odenwald, Hesse in Germany; Dogneca (Dognaczka) and Csiklova, Banat in Romania; Sarrabus, Sardinia and Monte Somma and Vesuvius, Campania in Italy; Nezdice in Czech Republic.

In Africa, significant specimens were recovered from Kenya, Namibia, Sudan, South Africa and Mont Ibity, Madagascar.

In Asia, wollastonite comes from Turkey, Tajikistan and Uzbekistan. In Japan, from Huagiyama, in Ibaragi Prefecture; in Ishiyamadera, Shiga Prefecture; and in Kushiro, Hiroshima Prefecture.
